Load 630~1000kg and speed 1.0~1.75m/s for machine roomless passenger elevator
1.0m/S Speed 13 Person Mrl Gearless Elevator Environment Protection

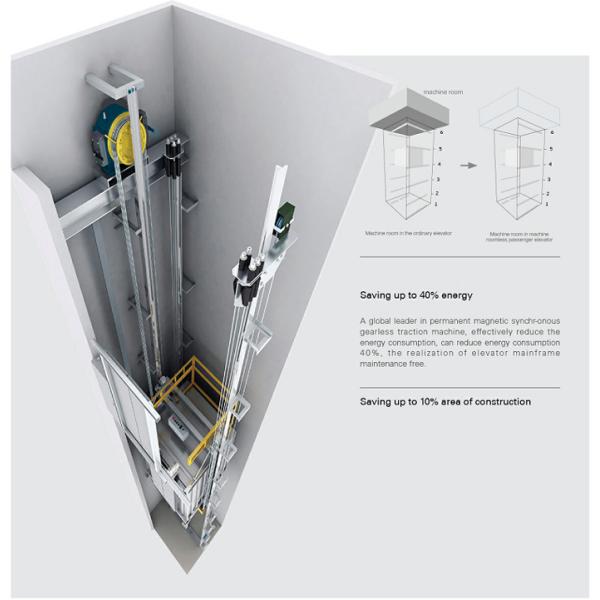

In order to know the concept of environment protection, energy saving, saving building area, improve the degree of freedom in design is the responsibility of the elevator without machine room, fully reflects the green spirit of humanity, the elevator needs only one independent well space, without room, with the same load weight level than conventional elevators, saving energy bu 40%, save construction area of 10%.
| Load(kg) | Speed(m/s) | Net car size | Net hoistway size | Maximum landing | Maximum travel |
| CW | CD | OP | HW | HD | S | K |
| 630 | 1.0 | 1200 | 1300 | 800 | 2150 | 1950 | 1500 | 4500 | 20 | 60 |
| 1.5 | 1200 | 1300 | 800 | 2150 | 1950 | 1600 | 4700 | 24 | 72 |
| 1.75 | 1200 | 1300 | 800 | 2150 | 1950 | 1700 | 4800 | 30 | 90 |
| 800 | 1.0 | 1350 | 1400 | 800 | 2300 | 2000 | 1500 | 4500 | 20 | 60 |
| 1.5 | 1350 | 1400 | 800 | 2300 | 2000 | 1600 | 4700 | 24 | 72 |
| 1.75 | 1350 | 1400 | 800 | 2300 | 2000 | 1700 | 4800 | 30 | 90 |
| 1000 | 1.0 | 1500 | 1600 | 900 | 2450 | 2100 | 1500 | 4500 | 20 | 60 |
| 1.5 | 1500 | 1600 | 900 | 2450 | 2100 | 1600 | 4700 | 24 | 72 |
| 1.75 | 1500 | 1600 | 900 | 2450 | 2100 | 1700 | 4800 | 30 | 90 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
